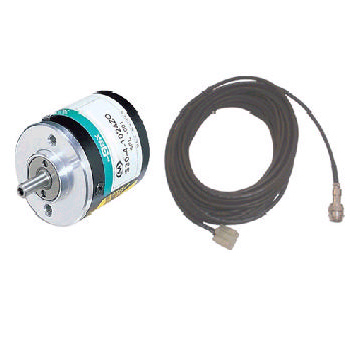

Rotary Encoder
Description
Rotary Encoder

Ask here to find the product that meets your needs
if you want more detailed specifications Or to purchase lot of products, please leave your message and specification. Or Email to us
Unit Price
$57
Number
ea

VIEW LIST

Detailed Information

- High Resolution
- Wide Ranging power source
- Custom design availiable
- Industrial Application
- Measuring Instruments

Specification


 Section content Remark
 Resolution 10 ~ 6000 P/R
 Output Form Power Supply Current Consumption
 Voltage Output DC + 5V ~ +15V
 Open Collector Complemental DC +24V 70mA Max.
 Line Driver DC + 5V ± 5% 150mA Max.
 Maximum 10 ~ 2048 P/R 150 kHz
 Response Frequency 2500 ~ 6000 P/R 300 kHz
 Length 1m


Available to replace the GAL Door Parts, SWC-1-445 for Gate Switch,
