Elevator Parts

You are here Home Parts Mall Elevator Mall DC Motor

Planetary Geared DC Motor, 105 Watt
Description
MODEL : CC52
Voltage : 12, 24V
No load motor speed: 3700rpm
No load current : 10.0A Max.
Nominal torque : 405mNm
Nominal current : 7.8A

Ask here to find the product that meets your needs
if you want more detailed specifications Or to purchase lot of products, please leave your message and specification. Or Email to us
Unit Price
$0
Number
ea

VIEW LIST

Detailed Information

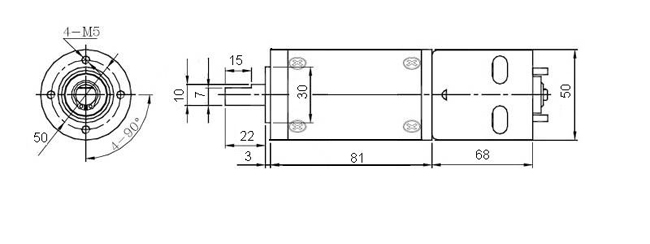

Dimension


Reduction Ratio1/3 ~ 1/41/12 ~ 1/261/43 ~ 1/1131/126 ~ 1/936
L(mm)53.068.584.099.5


Specification


Model Rated Voltage(VDC)No-load Speed(r/min)No-load Current(A)Rated Speed(r/min)Rated Torque(Nm)Output Power(W)Gear ratio
CC52-1212934.18417.25951:43
CC52-2424904.58219.351051:43


Shipping


ㆍWorldwide Air Mail: 14-21 Days
ㆍEMS: 5-10 Days
ㆍAll items are checked then hand-packed by our in-house team
ㆍWe do our best to ship orders as soon as payment clears, weekends included
ㆍSorry, but we are unable to ship to P.O. or A.P.O. Box address
ㆍFor high value orders we may require verification of address before we ship.This is done to protect the interests of both
you and us.

Package


Package : 40 pieces/carton
Carton size : 28 x 26 x 22.5cm
Unit weight : 1.5kg
Productivity : 2,000 pieces/month
