CC29 SERIES
Description
CC29 SERIES

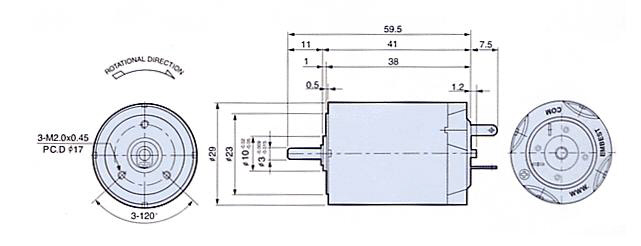

Ø29mm x L43 / Shaft Ø 3 mm / P.C.D. Ø 17mm
DC 12V : 3.1W / 4W / 5.2W / 9W (3400~5200 rpm)
DC 15V : 10W(3990 rpm)
DC 24V : 3.2W / 5W / 7W / 11W (3500~5200 rpm)



Ask here to find the product that meets your needs
if you want more detailed specifications Or to purchase lot of products, please leave your message and specification. Or Email to us
Unit Price
$60
Number
ea

VIEW LIST

Detailed Information


Features




DC Coreless Motor Series CC02904N4 <12Volt>

RATEModel No.012003012004012005012006
Voltage(V)12121212
Current(mA)4005006001000
Power(W)3.14.05.29.0
Speed(rpm)2900350045004500
Torque(mN*m)10.010.010.020.0
ELECTRICALMaximum Output Power(W)6.07.59.216.0
Maximum Efficiency(%)63656775
No Load Speed(rpm)3400410052005200
No Load Current(mA)9090100100
Stall Torque(mN*m)67.067.067.0120.0
Torque Constant(mN*m/A)30.725.820.520.8
Back EMF Constant(mV/rpm)3.352.552.212.26
Termainal Resistance(Ω)5.404.503.602.10
Termainal Inductance(mH)0.130.110.090.09
MECHANICALMechanica Time Const(ms)6.17.29.15.1
Armature Inertia(g*㎠) 10.610.610.610.6
Shaft Diameter φ3φ3φ3φ3
Bearing TypeMetal BearingBall Bearing
Weight(g)130130130130
Maximum Armature Temperature120 ℃
Motor Operating Temperature Range-20 ~80℃


DC Coreless Motor Series CC02904N4 <24Volt>

RATEModel No.024003024005024007024011
Voltage(V)24242424
Current(mA)210320400600
Power(W)3.25.07.011.0
Speed(rpm)3000320034004200
Torque(mN*m)10.015.020.025.0
ELECTRICALMaximum Output Power(W)7.08.010.518.0
Maximum Efficiency(%)63677074
No Load Speed(rpm)3500410044005200
No Load Current(mA)40405060
Stall Torque(mN*m)69.073.090.0120.0
Torque Constant(mN*m/A)61.553.550.042.8
Back EMF Constant(mV/rpm)6.575.805.414.55
Termainal Resistance(Ω)19.017.013.28.40
Termainal Inductance(mH)0.480.400.380.33
MECHANICALMechanica Time Const(ms)5.36.35.64.8
Armature Inertia(g*㎠) 10.610.610.610.6
Shaft Diameter φ3φ3φ3φ3
Bearing TypeMetal BearingBall Bearing
Weight(g)130130130130
Maximum Armature Temperature120 ℃
Motor Operating Temperature Range-20 ~80℃
