CC29L SERIES
Description
CC29L SERIES

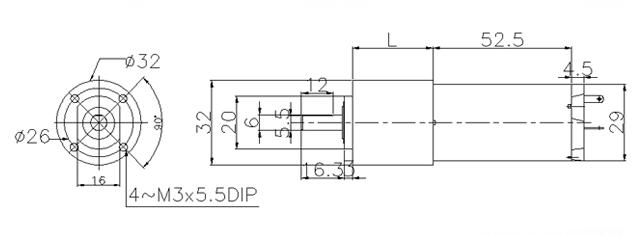

Ø29mm x L57 / Shaft Ø 3 mm / P.C.D. Ø 17mm
DC 24V : 15W ( 6200 rpm)


Ask here to find the product that meets your needs
if you want more detailed specifications Or to purchase lot of products, please leave your message and specification. Or Email to us
Unit Price
$0
Number
ea

VIEW LIST

Detailed Information


Features




<24Volt>

RATEModel No.024015
Voltage(V)24
Current(mA)900
Power(W)15
Speed(rpm)6000
Torque(mN*m)20
ELECTRICALMaximum Output Power(W)50
Maximum Efficiency(%)72
No Load Speed(rpm)6600
No Load Current(mA)200
Stall Torque(mN*m)280
Torque Constant(mN*m/A)22.2
Back EMF Constant(mV/rpm)3.63
Termainal Resistance(Ω)2.7
Termainal Inductance(mH)0.04
MECHANICALMechanica Time Const(ms)6.4
Armature Inertia(g*㎠) 25.6
Shaft Diameter φ4
Bearing TypeBall
Weight(g)185
Maximum Armature Temperature120 ℃
Motor Operating Temperature Range-20 ~80℃
