CC42 SERIES
CC42 SERIES

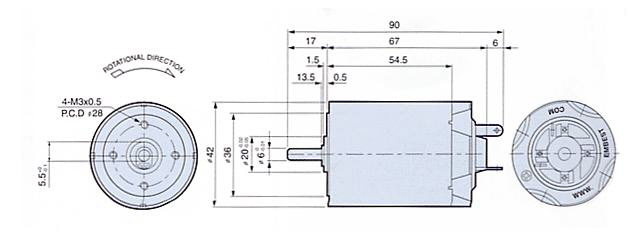

¨ª 42mm ¡¿ L 67mm / Shaft ¨ª 6 mm / P.C.D. ¨ª 28mm
DC 12V : 14W / 20W / 30W / 38W (2100~3500 rpm)
DC 24V : 23W / 33W / 45W / 55W (2600~4400 rpm)
Ask here to find the product that meets your needs
if you want more detailed specifications Or to purchase lot of products, please leave your message and specification.
Or Email to us
$0
ea
Features
DC Coreless Motor Series CC052070N4 <12Volt>
RATE
Model No.
012027
012035
012056
012080
Voltage(V)
12
12
12
12
Current(mA)
3000
4000
6000
8000
Power(W)
27.0
35.0
56.0
80.0
Speed(rpm)
1200
1700
1900
2500
Torque(mN*m)
200.0
200.0
250.0
300.0
ELECTRICAL
Maximum Output Power(W)
42.0
55.0
94.0
125.0
Maximum Efficiency(%)
75
76
78
80
No Load Speed(rpm)
1500
2000
2200
3100
No Load Current(mA)
200
300
400
500
Stall Torque(mN*m)
1000.0
1000.0
1500.0
1500.0
Torque Constant(mN*m/A)
71.4
54.0
48.3
35.7
Back EMF Constant(mV/rpm)
7.85
5.81
5.22
3.85
Termainal Resistance(¥Ø)
0.90
0.70
0.40
0.30
Termainal Inductance(mH)
0.12
0.10
0.08
0.06
MECHANICAL
Mechanica Time Const(ms)
4.8
6.5
4.7
6.4
Armature Inertia(g*§²)
274.0
274.0
274.0
274.0
Shaft Diameter
¥õ8
¥õ8
¥õ8
¥õ8
Bearing Type
Metal Bearing
Ball Bearing
Weight(g)
660
660
660
660
Maximum Armature Temperature
120 ¡É
Motor Operating Temperature Range
-20 ~80¡É
DC Coreless Motor Series CC052070N4 <24Volt>
RATE
Model No.
024032
024050
024080
024100
Voltage(V)
24
24
24
24
Current(mA)
1800
3000
4000
5800
Power(W)
32.0
50.0
80.0
100.0
Speed(rpm)
1500
1800
2600
3500
Torque(mN*m)
200.0
250.0
300.0
300.0
ELECTRICAL
Maximum Output Power(W)
60.0
90.0
160.0
220.0
Maximum Efficiency(%)
72
75
77
79
No Load Speed(rpm)
1800
2200
3000
4100
No Load Current(mA)
200
300
400
500
Stall Torque(mN*m)
1200.0
1500.0
2000.0
2000.0
Torque Constant(mN*m/A)
120.0
96.7
71.0
40.5
Back EMF Constant(mV/rpm)
13.15
10.52
7.85
5.85
Termainal Resistance(¥Ø)
2.40
1.60
0.90
0.70
Termainal Inductance(mH)
0.18
0.17
0.14
0.12
MECHANICAL
Mechanica Time Const(ms)
4.6
4.7
4.9
11.7
Armature Inertia(g*§²)
274.0
274.0
274.0
274.0
Shaft Diameter
¥õ8
¥õ8
¥õ8
¥õ8
Bearing Type
Ball Bearing
Weight(g)
660
660
660
660
Maximum Armature Temperature
120 ¡É
Motor Operating Temperature Range
-20 ~80¡É
