Elevator Parts
DC Motor
Product Name Description Unit Price Number Cart

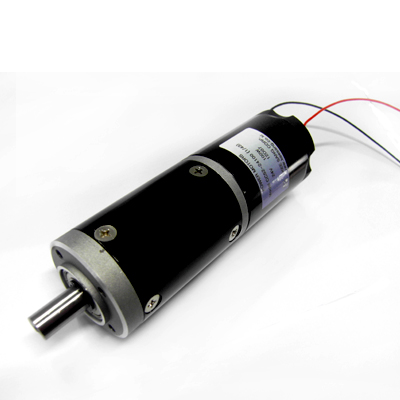

Planetary Geared DC Motor, 105 Watt MODEL : CC52 Voltage : 12, 24V No load motor speed: 3700rpm No load current : 10.0A Max. Nominal torque : 405mNm Nominal current : 7.8A $0 ea

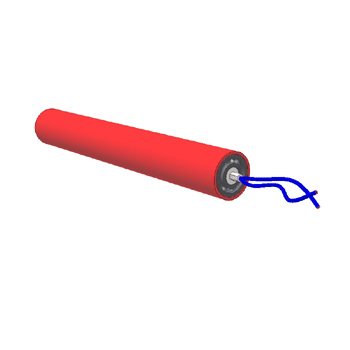

MOTRORIZED ROLLER
Powered Motor(PM486FE)
1.91"(48.6mm) Diameter 24V DC Motorized Roller		 $0 ea
CC29 SERIES CC29 SERIES Ø29mm x L43 / Shaft Ø 3 mm / P.C.D. Ø 17mm DC 12V : 3.1W / 4W / 5.2W / 9W (3400~5200 rpm) DC 15V : 10W(3990 rpm) DC 24V : 3.2W / 5W / 7W / 11W (3500~5200 rpm) $60 ea
CC29L SERIES CC29L SERIES Ø29mm x L57 / Shaft Ø 3 mm / P.C.D. Ø 17mm DC 24V : 15W ( 6200 rpm) $0 ea
CC36 SERIES CC36 SERIES Ø 36mm × L 55mm / Shaft Ø 4 mm / P.C.D. Ø 23mm DC 12V : 5.5W / 10W / 13W / 20W (2000~3800 rpm) DC 24V : 8W / 12. / 18W / 26W (2400~4500 rpm) $0 ea
CC42 SERIES CC42 SERIES Ø 42mm × L 67mm / Shaft Ø 6 mm / P.C.D. Ø 28mm DC 12V : 14W / 20W / 30W / 38W (2100~3500 rpm) DC 24V : 23W / 33W / 45W / 55W (2600~4400 rpm) $0 ea
CC52 SERIES CC52 SERIES Ø 52mm × L 72mm / Shaft Ø 8 mm / P.C.D. Ø 35mm DC 12V : 27W / 35W / 56W / 80W (1500~3100 rpm) DC 24V : 32W / 50W / 80W / 100W (1800~4100 rpm) $0 ea
CC65 SERIES CC65 SERIES Ø 65mm × L 91.5mm / Shaft Ø 8 mm / P.C.D. Ø 34mm DC 12V : 36W / 50W / 75W / 100W (1400~3000 rpm) DC 24V : 40W / 60W / 80W / 120W (1700~3000 rpm) $0 ea
CC87 SERIES CC87 SERIES Ø 87mm × L 140mm / Shaft Ø 10 mm / P.C.D. Ø 52mm DC 12V : 60W / 100W / 140W / 200W (900~1500 rpm) DC 24V : 120W / 180W / 230W / 300W (1300~2000 rpm) $0 ea
CG29 SERIES CG29 SERIES CG29-12(12V) CG29-15(15V) CG29-24(24V) Ø29mm / Shaft Ø6 mm / P.C.D. Ø24mm $0 ea
CG29L-24(24V) CG29L-24(24V) Ø 32mm / Shaft Ø 6 mm / P.C.D. Ø 26mm $0 ea
